Perfection in 4 model sizes

More power impresses



Four new dimensions of heating! The exact dimensions are based on the ‘golden ratio’, enabling screens of different sizes to combine perfectly with one-another. The very latest technology is paired with refined and simple design.

ERS Heatscreen Infrarot Paneel Hochformat oder Querformat

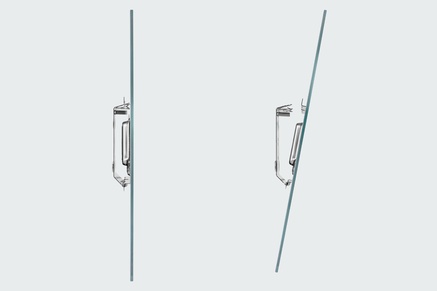

Can be vertically and horizontally mounted

Infrarotpaneel ist nur 7 mm dünn

Infrared panel thickness just 5-7mm

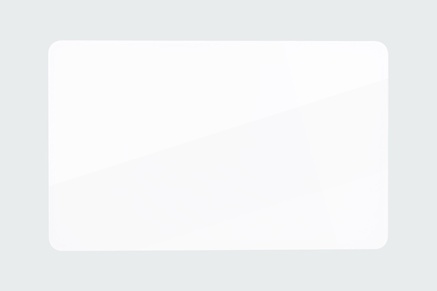

ERS Heatscreen

MI

Nominal power 200 W
Dimensions 520 x 200 x 5 mm
Distance to the wall 50 mm
Weight 1,8 kg
Room size* 0 to 6 m²


Request now ›

ERS Heatscreen

S

ERS Heatscreen 300  Watt
Nominal power 300 W
Dimensions 520 x 321 x 5 mm
Distance to the wall 50 mm
Weight 2,5 kg
Room size* 6 to 10 m²


Request now ›

ERS Heatscreen

M

ERS Heatscreen 800  Watt
Nominal power 800 W
Dimensions 520 x 841 x 5 mm
Distance to the wall 50 mm
Weight 5,5 kg
Room size* 16 to 24 m²


Request now ›

ERS Heatscreen

L

ERS Heatscreen 1350  Watt
Nominal power 1350 W
Dimensions 520 x 1361 x 7 mm
Distance to the wall 50 mm
Weight 12 kg
Room size* 24 to 34 m²


Request now ›

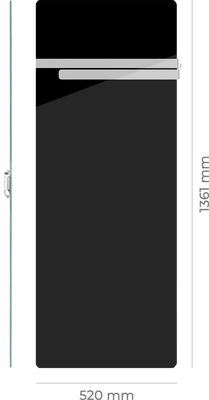

ERS Radiator for Bathrooms

Black/White incl. towel holder

Nominal power 1000 W
Dimensions 520 x 1361 x 7 mm
Distance to the wall 50 mm
Weight 12,5 kg
Room size* 16 to 24 m²


Request now ›

More information ›

ERS Heatscreen

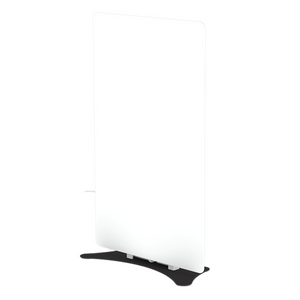

Plug & Play

Nominal power 800 W
Dimensions 520 x 841 x 5 mm
Distance to the floor 30 mm
Weight 12,5 kg
Room size* 16 to 24 m²


Request now ›

All information on room sizes is intended to provide guidelines. The heatable area depends on the type of building and the applicable heating subsidy. For an exact evaluation of your heating requirements, please contact your specialist ERS dealer.

So flat – so strong
The Heatscreen is a really flat screen

Which model size is required?

S

Molecular Fused Layer Technology

In technological terms, we belong to a very special stratum

The secret of ERS' success, and prerequisite for the efficacy of our heating technology, is the special layer technology we use. At a temperature of several thousand degrees, a tissue-paper-thin heating layer is fused with an infrared-permeable toughened safety-glass pane. The process is conducted by an ultra-precise fully-automatic plasma robot. The permanent and inseparable bond radiates heat straight from the heating layer into the room – without loss.

Control & accessories

Comfortable temperatures at all times

ERS Heatscreen

Controls & sensors

ERS Heatscreen Infrarotheizung Steuerungen & Fühler

ERS Heatscreen

Stands & accessories

ERS Heatscreen Infrarotheizung Standfuß & Zubehör
